Flow & Workflow

Flow and workflow engine in AgenticX.

Flow & Workflow Engine

AgenticX exposes two complementary ways to orchestrate multi-step logic: a decorator-driven Flow system for in-process method graphs, and a configuration-driven `WorkflowEngine` for graph-based execution.

Overview

Layer	Module	Best for
Flow	`agenticx.flow`	Python classes with `@start` / `@listen` / `@router`
Execution plan	`agenticx.flow.execution_plan`	Staged goals, pause/resume, persistence
Graph engine	`agenticx.core.graph`	Async nodes returning next node or `End`
Workflow engine	`agenticx.core.workflow_engine`	`Workflow` / `WorkflowGraph`, concurrent branches

Flow system

`Flow` base class

Generic over state type `T` (dict or Pydantic model).
Entry points: `kickoff()` (sync) and `kickoff_async()`.

Decorators

Decorator	Role
`@start()`	Unconditional entry point
`@listen(...)`	Runs when trigger condition is satisfied
`@router(...)`	Returns a string label for routing

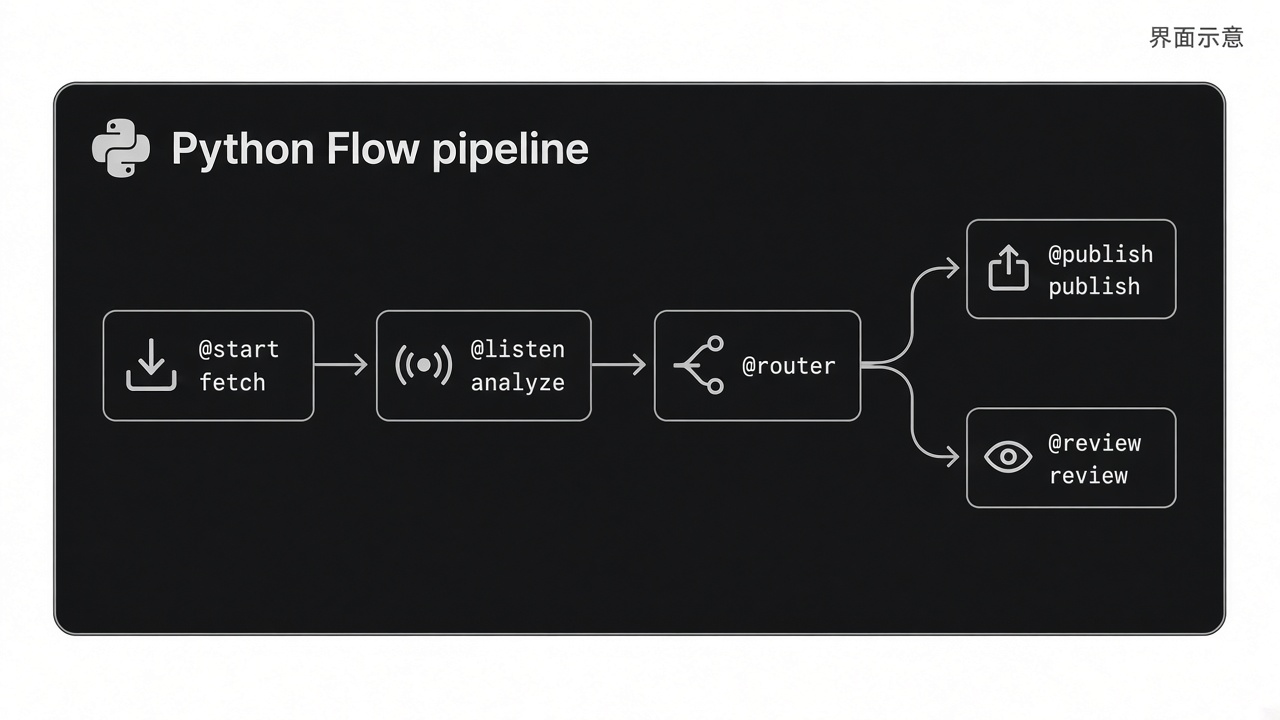

Example: simple data pipeline

python

1from agenticx.flow import Flow, start, listen, router
2
3class DataPipeline(Flow[dict]):
4    @start()
5    def fetch_data(self):
6        return {"data": [1, 2, 3]}
7
8    @listen("fetch_data")
9    def process_data(self, result):
10        return {"processed": [x * 2 for x in result["data"]]}
11
12    @router("process_data")
13    def branch(self, result):
14        values = result.get("processed", [])
15        return "NONEMPTY" if values else "EMPTY"
16
17    @listen("NONEMPTY")
18    def on_success(self):
19        self.state["status"] = "ok"
20
21    @listen("EMPTY")
22    def on_empty(self):
23        self.state["status"] = "empty"
24
25flow = DataPipeline()
26flow.kickoff()

Execution plan

`ExecutionPlan`

Field	Description
`stages`	List of `ExecutionStage`
`current_stage_index`	Index of the active stage
`intervention_state`	`InterventionState` for external control

`ExecutionStage` and `Subtask`

`ExecutionStage`: name, subtasks, status
`Subtask`: id, name, query, status, result/error

Core capabilities

`ExecutionPlan.to_mermaid()`: returns a Mermaid diagram string
`pause()` / `resume()` / `reset_node(subtask_id)`
`overall_progress`: fraction of subtasks completed

Graph engine

Module: agenticx.core.graph

python

1from agenticx.core.graph import Graph, BaseNode, End, GraphRunContext
2
3class StartNode(BaseNode):
4    async def run(self, ctx: GraphRunContext) -> ProcessNode | End[str]:
5        # Do work
6        return ProcessNode()
7
8class ProcessNode(BaseNode):
9    async def run(self, ctx: GraphRunContext) -> End[str]:
10        return End(result="done")
11
12graph = Graph(nodes=[StartNode, ProcessNode])
13result = await graph.run(StartNode())

WorkflowEngine

Module: agenticx.core.workflow_engine

`WorkflowEngine` runs a `Workflow` model or `WorkflowGraph`
Concurrency: entry nodes and downstream fan-out run via asyncio.gather
Condition routing: edges may encode JSON condition_config
Observability: ExecutionContext holds event_log

Quick reference imports

python

1# Flow
2from agenticx.flow import (
3    Flow,
4    FlowState,
5    start,
6    listen,
7    router,
8    or_,
9    and_,
10)
11
12# Execution plan
13from agenticx.flow import (
14    ExecutionPlan,
15    ExecutionStage,
16    Subtask,
17    ExecutionPlanManager,
18)
19
20# Graph
21from agenticx.core.graph import Graph, BaseNode, End, GraphRunContext
22
23# Workflow
24from agenticx.core.workflow_engine import WorkflowEngine, WorkflowGraph
