Memory in AgenticX

Overview

Agents need stable identity, recall of past work, and a bounded context window. AgenticX combines file-backed workspace memory, a session scratchpad, automatic fact extraction after each turn, hybrid retrieval into the Meta-Agent system prompt, optional Mem0 backends, and LLM-assisted context compaction on long threads.

Together these mechanisms approximate a layered memory stack: what must always be true (identity), what happened recently (episodes), what generalizes (semantics), what the model sees this turn (working set), what survives across sessions (long-term files and stores), and what is scoped to the user's workspace on disk.

Memory hierarchy (six-layer model)

The table maps a classic cognitive-style hierarchy to concrete AgenticX surfaces. Layers are conceptual; several features overlap in implementation.

!!! note "Indexing vs raw files"

Hybrid search (WorkspaceMemoryStore) indexes MEMORY.md, IDENTITY.md, USER.md, SOUL.md, and all memory/*.md under the workspace directory. Keeping these files concise improves recall quality.

MemoryHook

`MemoryHook` is an `AgentHook` registered on `AgentRuntime` with `priority=-10`, so it runs after hooks with higher numeric priority when run_on_agent_end walks the registry.

When it runs

• `on_agent_end` is invoked after a turn completes.
• It reads `session.chat_history`. If `len(chat_history) < MIN_CHAT_TURNS * 2` it returns immediately. Defaults: `MIN_CHAT_TURNS = 3` → at least six chat records required.
• Workspace directory: session.workspace_dir, else AGX_WORKSPACE_ROOT, else the user home directory.

Extraction and limits

• Heuristic only (no extra LLM call): scans the last 20 messages for Chinese user-request cues and assistant completion cues, emits bullet lines such as - 用户请求: / - 完成事项:.
• Caps output at `MAX_FACTS_PER_SESSION` (8) facts.

Persistence

• Appends a dated block to `memory/<today>.md` under the workspace. Skips append if existing daily file plus new block would exceed 8000 characters.
• If `MEMORY.md` exists and is under 4000 characters, appends an `## Auto-extracted` section with up to four of the facts.

Scratchpad

• Merges facts into session.scratchpad["session_facts"] (concatenated with newlines).

`_maybe_compact_daily`

• If today's `memory/<YYYY-MM-DD>.md` exceeds 2000 characters, rewrites it: keeps headings, drops duplicate bullet lines keyed by the first 80 characters (case-folded), preserving first occurrence. This is deterministic deduplication, not an LLM summarizer.

1# Reference constants (agenticx/runtime/hooks/memory_hook.py)
2MIN_CHAT_TURNS = 3          # requires len(chat_history) >= MIN_CHAT_TURNS * 2
3MAX_FACTS_PER_SESSION = 8

!!! warning "LANGUAGE HEURISTICS"

Fact patterns target Chinese request keywords and Chinese/English completion markers. Conversations in other languages may yield fewer or no extracted lines until heuristics are extended.

Workspace memory

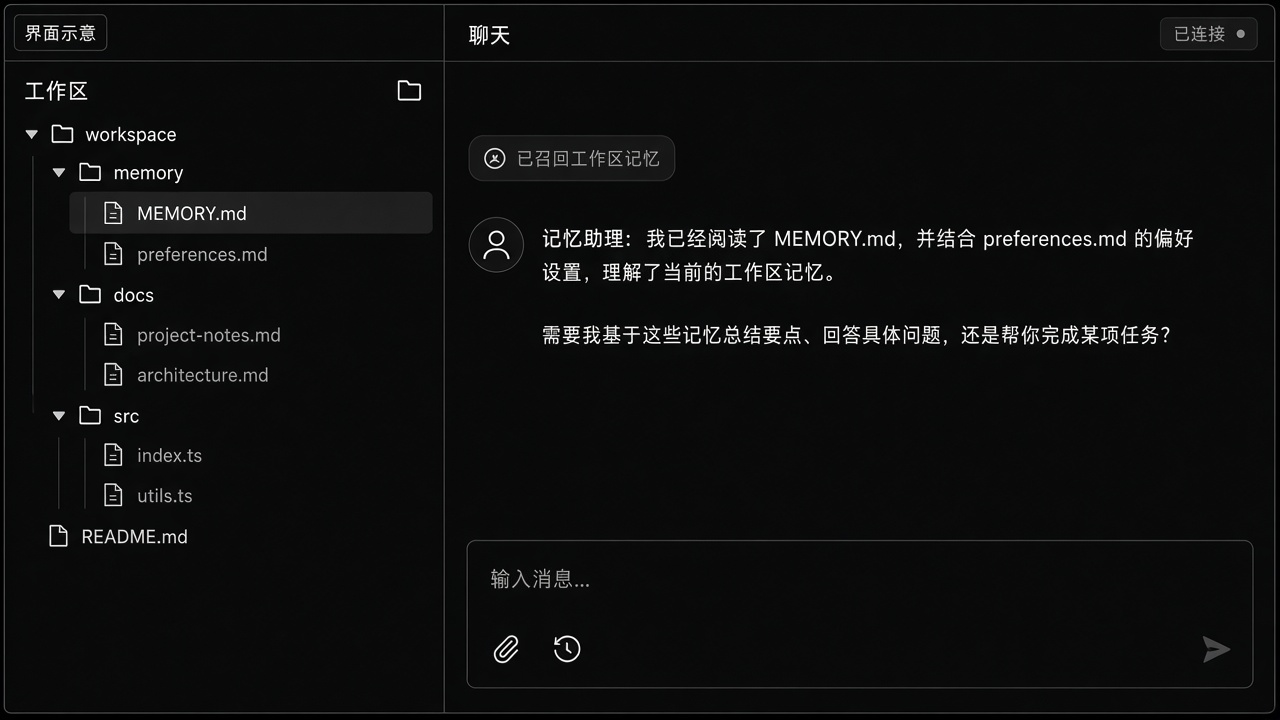

Directory layout (`~/.agenticx/workspace/`)

Additional session artifacts (avatars, groups) may live alongside; the search index explicitly pulls the four root markdown files plus memory/*.md.

Automatic recall: `_build_memory_recall_context`

Defined in agenticx/runtime/prompts/meta_agent.py. When building the Meta-Agent system prompt it:

1. Collects text from the last five user messages (up to 200 characters each).
2. Builds a query string (max 500 characters).
3. Calls WorkspaceMemoryStore.search_sync(..., limit=5, mode="hybrid").
4. Injects a `## 相关历史记忆（自动召回）` section with snippets capped around 500 characters total.

If there are no user messages or no hits, the section is omitted.

!!! tip "Recall quality"

Run or schedule WorkspaceMemoryStore.index_workspace_sync(workspace_dir) after large edits to markdown so FTS and hybrid ranking see fresh content.

Mem0 integration

Mem0 is optional. Install with the extra that pulls memory dependencies:

1pip install "agenticx[memory]"

At runtime, `agenticx.memory` exposes `Mem0` / async variants when dependencies are present; the vendored integration under `agenticx/integrations/mem0/` supports multiple vector stores and configs. Use Mem0 when you want managed long-term semantic memory (add/search APIs, hosted or local) instead of or alongside file-based MEMORY.md.

!!! note "Separation from MemoryHook"

MemoryHook writes markdown under the workspace. Mem0 is a separate data plane; wiring both is valid if you want file logs plus vector search.

Session scratchpad

Each `StudioSession` carries a `scratchpad` dictionary persisted via SQLite (agenticx/memory/session_store.py). Besides user/agent keys from scratchpad_write, the runtime uses reserved patterns:

Meta-Agent context building reads subagent_result::* entries for "historical subagent results" when registry rows are missing.

Context compaction (`ContextCompactor`)

Before each turn, `AgentRuntime` runs `ContextCompactor.maybe_compact` on sanitized agent_messages.

Process:

1. Split into prefix (to compact) and suffix (retained).
2. Call the runtime LLM with a Chinese compaction instruction (temperature 0, max_tokens 400).
3. Replace the prefix with a single system message prefixed with [compacted] and the summary.
4. On failure, fall back to concatenated short snippets.

Minimum enforced floors: threshold_messages >= 8, threshold_chars >= 4000, retain_recent_messages >= 4.

!!! note "Configuration surface"

Defaults are fixed in AgentRuntime.__init__ (ContextCompactor(llm) with no YAML overrides). Custom deployments can construct AgentRuntime with a preconfigured ContextCompactor if needed.

Memory-related configuration

1# ~/.agenticx/config.yaml (illustrative memory block)
2memory:
3  backend: sqlite
4  path: ~/.agenticx/workspace
